UV Disinfection Systems / UV Disinfection for Wastewater
TrojanUV3000PTP
Designed as a generic type of UV disinfection unit, the Trojan Package Treatment Plant (PTP) is very price competitive and offers an "off-the-shelf" solution for operators with limited budgets and limited treatment requirements.
Our smallest wastewater system in terms of flow-handling, the TrojanUV3000™PTP is ideally suited to treat flows up to 2.8 MGD (441.6 m3/hr). The TrojanUV3000™PTP can be equipped with pre-fabricated stainless steel channels and transition boxes for in-line integration with existing flanged piping – thus minimizing engineering and installation costs.
It can be easily retrofitted into existing chlorine contact tanks and effluent channels, and come pre-tested, pre-assembled and pre-wired to minimize installation costs. Using Trojan’s most proven, modular design and robust components, including low-pressure lamps, these systems are straightforward to operate and require minimal operator involvement.
TrojanUV3000™B
The TrojanUV3000™B offers a cost-effective UV disinfection solution for wastewater treatment plants with limited resources. The system uses energy-efficient, low-pressure lamps.
The TrojanUV3000™B is available with a controller that enables flow pacing to maximize operating efficiency and extend lamp life. The system turns UV lamp banks on and off automatically to ensure the required dose is met using the fewest lamps and least electricity. These simple, robust, and operator-friendly systems have demonstrated their effective, reliable performance in over 1,000 installations around the world.

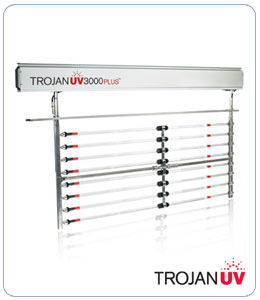

TrojanUV3000Plus
Designed using the latest UV technology, the TrojanUV3000Plus™ uses energy-efficient amalgam lamps. It also features Trojan’s patented ActiClean™ chemical/mechanical cleaning system to minimize maintenance.
This highly flexible system has demonstrated its effective, reliable performance around the world. It features Trojan’s patented ActiClean™ chemical/mechanical cleaning system to minimize maintenance. It is well suited to wastewater disinfection applications with a wide range of flow rates, as well as challenging effluent (primary and combined sewer overflows) and high level disinfection such as tertiary wastewater reclamation and reuse.

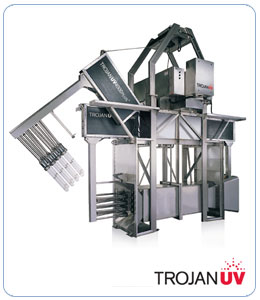

TrojanUV4000Plus
The TrojanUV4000Plus™ is the first commercially-successful, medium-pressure UV lamp system that’s specifically designed for handling high volume and lower quality wastewater. It also features Trojan’s patented ActiClean™ chemical/mechanical cleaning system to minimize maintenance.
Incorporating ActiClean™ - Automatic Chemical/Mechanical cleaning technology, the TrojanUV4000Plus™ is the ultimate solution for a virtually maintenance-free system. With over 375 installations – including some of the largest wastewater treatment plants in the world – the TrojanUV4000Plus™ is allowing engineers and operators to incorporate chemical-free, UV disinfection for large flows of 10 MGD (1,578 m3/hr) and greater in a minimal amount of space – with a fraction of the number of lamps required by low-pressure systems. The extremely compact system can be used for low UV transmittance applications previously unattainable with ultraviolet technology. It also offers the flexibility to treat a wide range of wastewater; from primary, secondary and blended effluents to combined and sanitary sewer overflows to water for reuse applications.

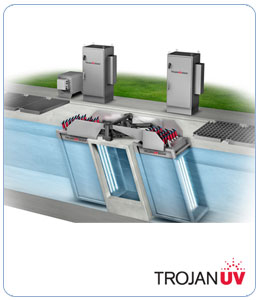

TrojanUVSigna
No longer should large wastewater facilities feel limited to chlorine disinfection. Now – with the TrojanUVSigna™ – those facilities can confidently choose UV and benefit from its inherent safety features, cost-saving advantages and disinfection performance.
TrojanUVSigna™ incorporates our latest innovations, including TrojanUV Solo Lamp™ Technology, to reduce the total cost of ownership and drastically simplify operation and maintenance. It is the ideal solution for those facilities wanting to easily and cost-effectively convert from chlorine to UV disinfection.
TrojanUVFit
Depending on site and design conditions, wastewater treatment plants producing filtered effluent sometimes prefer a disinfection solution using closed-vessel or pressurized UV reactors.
The TrojanUVFit™ offers an effective and energy-efficient closed-vessel UV solution. This compact reactor is available in multiple configurations to treat a wide range of flow rates. The streamlined hydraulic profile of closed-vessel systems disinfect filtered effluent without breaking head in the treatment process. These benefits along with UV’s ability to provide environmentally-friendly, chemical-free treatment for chlorine resistant microorganisms (such as Cryptosporidium and Giardia) make the TrojanUVFit™ closed-vessel solution an attractive option for wastewater disinfection.
