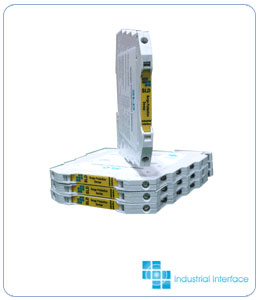

SLD67-16 Surge Protector For Process Loops
- Surge Protection for Process Signals
- Clamping Voltage of 16V
- Multi-stage Hybrid Circuitry
- Automatic High Current Earth Connection
- Ultra-slim only 6.7m wide on DIN Rail
- Designed to IEC 61643-1 but Low Cost!
The SLD range of ultra-slim surge protection units are designed to protect process control signals from the effects of high voltage transients and overloads.
THe SLD67-16 has a clamping voltage of 16V which makes it ideal for process control signals like 0-10Vdc.
A range of other clamping voltages are provided for other signals such as thermocouples, RTD's, digital inputs and RS232/485 communications links.
Connection to earth is automatic via a DIN rail clip which has a large surface are to maximise the discharge current and minimise the chance of any damage occuring. The ultra compact 6.7mm design makes themm both space saving as well as cost saving!
SLD67-32 Surge Protector For Process Loops
- Surge Protection for 24Vdc Process Signals
- Multi-stage Hybrid Circuitry
- Automatic High Current Earth Connection
- Ultra-slim only 6.7m wide on DIN Rail
- Designed to IEC 61643-1 but Low Cost!
The SLD range of ultra-slim surge protection units are designed to protect process control signals from the effects of high voltage transients and overloads.
THe SLD67-32 has a clamping voltage of 32V which makes it ideal for 24Vdc process control signals like 4-20mA.
A range of other clamping voltages are provided for other signals such as thermocouples, RTD's, digital inputs and RS232/485 communications links.
Connection to earth is automatic via a DIN rail clip which has a large surface are to maximise the discharge current and minimise the chance of any damage occuring. The ultra compact 6.7mm design makes themm both space saving as well as cost saving !
SLD67-32-3W Surge Protector For Process Loops
- Surge Protection for 24Vdc 3-Wire Transmitters & Process Signals
- Multi-stage Hybrid Circuitry
- Automatic High Current Earth Connection
- Ultra-slim only 6.7m wide on DIN Rail
- Designed to IEC 61643-1 but Low Cost !
The SLD range of ultra-slim surge protection units are designed to protect process control signals from the effects of high voltage transients and overloads.
THe SLD67-32-3W has a clamping voltage of 32V which makes it ideal for 24Vdc process control signals like 4-20mA. The unit protects all three input and output wires connected making it ideal for 3-wire transmitter systems.
A range of other clamping voltages are provided for other signals such as thermocouples, RTD's, digital inputs and RS232/485 communications links.
Connection to earth is automatic via a DIN rail clip which has a large surface are to maximise the discharge current and minimise the chance of any damage occuring. The ultra compact 6.7mm design makes themm both space saving as well as cost saving !
SLD67-7 Surge Protector For Process Loops
- Surge Protection for Thermocouples and other low voltage Signals
- Clamping Voltage of 7V
- Multi-stage Hybrid Circuitry
- Automatic High Current Earth Connection
- Ultra-slim only 6.7m wide on DIN Rail
- Designed to IEC 61643-1 but Low Cost !
The SLD range of ultra-slim surge protection units are designed to protect process control signals from the effects of high voltage transients and overloads.
THe SLD67-7 has a clamping voltage of 7V which makes it ideal for thermocouples, photcells and other low voltage process control signals.
A range of other clamping voltages are provided for other signals such as mA loops, 0-10V signals, RTD's, digital inputs and RS232/485 communications links.
Connection to earth is automatic via a DIN rail clip which has a large surface are to maximise the discharge current and minimise the chance of any damage occuring. The ultra compact 6.7mm design makes themm both space saving as well as cost saving !
SLD67-RTD Surge Protector For RTD Sensors
- Surge Protection for RTD's like PT100 Sensors
- Clamping Voltage of 7V
- Multi-stage Hybrid Circuitry
- Automatic High Current Earth Connection
- Ultra-slim only 6.7m wide on DIN Rail
- Designed to IEC 61643-1 but Low Cost !
The SLD range of ultra-slim surge protection units are designed to protect process control signals from the effects of high voltage transients and overloads.
THe SLD67-RTD has a clamping voltage of 7V which makes it ideal for 2 an 3-wire PT100 sensors.
A range of other clamping voltages are provided for other signals such as mA loops, 0-10V signals, thermocouples, digital inputs and RS232/485 communications links.
Connection to earth is automatic via a DIN rail clip which has a large surface are to maximise the discharge current and minimise the chance of any damage occuring. The ultra compact 6.7mm design makes them both space saving as well as cost saving !
SLD-485 RS485 Communications Surge Protector
- 3-way screw terminals for input/output connection
- 2 Mbps maximum data rate
- 12 V Clamping Voltage 5kA discharge current (ln 8/20)
- Insertion Loss <0.5dB
- High Spec, Low Cost
- Designed to IEC 61643-21
The SLD-485 is designed to protect RS communications links from the effects of surge voltages or transients.
The unit has 3-way input/output screw terminals and a separate earth wire connection making it quick and easily installed in series with any existing RS485 link.
SLD-RJ11 Telephone Line Surge Protector
- RJ11 Input/Output Sockets
- 2 Mbps maximum data rate
- 110 V Clamping Voltage 5kA discharge current (ln 8/20)
- Insertion Loss <0.5dB
- High Spec, Low Cost
- Designed to IEC 61643-21
The SLD-RJ11 is designed to protect telephone lines the effects of surge voltages or transients.
The unit has input/output RJ11 connectors and a separate earth wire connection making it quick and easily installed in series with any existing telephone line.

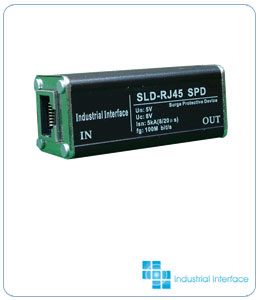

SLD-RJ45 Ethernet Surge Protector
- RJ45 Input/Output Sockets
- 100 Mbps maximum data rate
- 8 V Clamping Voltage 2.5kA discharge current (ln 8/20)
- High Spec, Low Cost
- Designed to IEC 61643-21
The SLD-RJ45 is designed to protect industrial and computer networks from the effects of surge voltages or transients.
The unit has input/output RJ45 connectors and a separate earth wire connection making it quick and easily to install in series with any existing network.
SLD-BNC Video Signals Surge Protector
- BNC Connectors for input/output
- 16 Mbps maximum data rate
- 12 V Clamping Voltage 5kA discharge current (ln 8/20)
- Insertion Loss <0.5dB
- High Spec, Low Cost
- Designed to IEC 61643-21
The SLD-BNC is designed to protect video signal links from the effects of surge voltages or transients.
The unit has BNC input/output connectors and a separate earth wire connection making it quick and easily installed in series with any existing video link.
SLD-XD24B CCTV Surge Protector
- BNC Connectors for input/output
- 16 Mbps maximum data rate
- 12 V Clamping Voltage 5kA discharge current (ln 8/20)
- Insertion Loss <0.5dB
- High Spec, Low Cost
- Designed to IEC 61643-21
The SLD-XD24B is designed to protect CCTV video links from the effects of surge voltages or transients.
The unit has BNC input/output connectors and a separate earth wire connection making it quick and easily installed in series with any existing CCTV link.
