OurProducts
System Components & Recorders / Signal Convertors
Isocon-6 Signal Converter with Isolation
- Universal input/output signal converter
- 3-Port Isolation
- 12-36Vdc or 12-32Vac Power Supply
- Isolated Transmitter Supply
- No PC software required
- Only 12.5mm wide on DIN rail
The Isocon-6 signal isolator can accept almost any process input and provide a mA Current or Voltage output.
Input types include mA, volts, thermocouples, RTD's, and potentiometers and provides an isolated mA or Voltage output.
The input and output are simply configured using DIP switches and non-interactive zero and span buttons allow for easy 'tweaking' of the unit in the field.
For the 90-230Vac supply version please see the Isocon-3
Isocon-3 Signal Converter with Isolation
- Universal input/output signal converter
- 3-Port Isolation
- 90-2302Vac Power Supply
- Isolated Transmitter Supply
- No PC software required
- Only 12.5mm wide on DIN rail
The Isocon-3 signal isolator can accept almost any process input and provide a mA Current or Voltage output.
Input types include mA, volts, thermocouples, RTD's, and potentiometers and provides an isolated mA or Voltage output.
The input and output are simply configured using DIP switches and non-interactive zero and span buttons allow for easy 'tweaking' of the unit in the field.
Slimcon-6 Isolating Signal Converter
- Any mA or DC Voltage input
- User Configurable
- High Accuracy, Low Cost
- Ultra Compact Slim design
The Slimcon-6 is an ultra compact isolating signal conditioner which can convert andisolate virtually any mA or voltage input and provide an isolated mA or voltage output.
the input and output configuration can be user selected using DIP switches and the zero and span potentiometers allow easy non-interactive adjustment of the unit i the field.
The Slimcon-6 is the ultmate low cost, high accuracy compact signal conditioner.

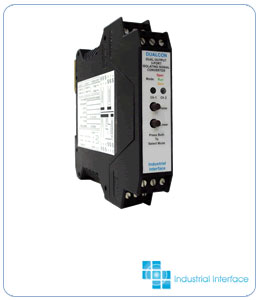

Dualcon-6 Dual Output isolating signal Converter
- 2 Isolated Outputs from 1 input
- Universal input/output signal converter
- 3-Port Isolation
- 12-36Vdc or 12-32Vac Power Supply
- Isolated Transmitter Supply
- No PC software required
- Only 17.5mm wide on DIN rail
The Dualcon-6 siganl isolator can accept almost any process input and provide two mA Current or Voltage outputs.
Input types include mA, volts, thermocouples, RTD's, and potentiometers.
The input and outputs are simply configured using DIP switches and non-interactive zero and span buttons allow easy 'tweaking' of the unit in the field.
Dualcon-3 Dual Output Isolating signal Converter
- 2 Isolated Outputs from 1 input
- Universal input/output signal converter
- 3-Port Isolation
- 90-230Vac Power Supply
- Isolated Transmitter Supply
- No PC software required
- Only 17.5mm wide on DIN rail
The Dualcon-3 signal isolator can accept almost any process input and provide two isolated mA Current or Voltage outputs.
Input types include mA, volts, thermocouples, RTD's, and potentiometers.
The input and outputs are simply configured using DIP switches and non-interactive zero and span buttons allow easy 'tweaking' of the unit in the field.

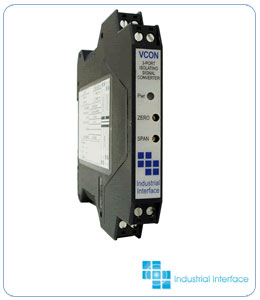

VCONHL Isolating Signal Converter
- Any mA or DC Voltage input
- AC Voltage and Current Inputs
- Strain Guage Excitation Voltage
- High Accuracy, Low Cost
- Ultra Compact Slim design
The VCONHL-6 is a compact isolating signal conditioner which can convert and isolate virtually any mA or voltage input and provide an isolated mA or voltage output.
The unit can also be used to isolate AC current and voltage signals and the zero and span potentiometers allow easy non-interactive adjustment of the unit in the field.
The VCONHL-6 is the ultmate low cost, high accuracy signal conditioner for AC current and voltage signals.
