OurProducts
System Components & Recorders / Power Supplies
DSP10-24 10W Power Supply
- 90 to 264 Vac input
- 10 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
- Range of Output Voltages available
The DSP10-24 is a 10W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure ony 18mm wide. The maximum output current is 400mA at 24Vdc so the DSP10-24 is ideal for powering 4-20mA loops or other instrumentation.

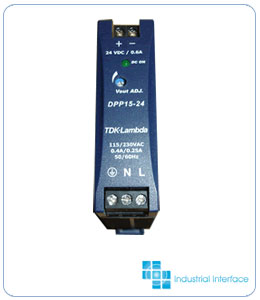

DPP15-24 15W Power Supply
- 90 to 264 Vac input
- 15 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
- Range of Output Voltages available
The DPP15-24 is a 15W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure ony 23mm wide. The maximum output current is 625mA at 24Vdc so the DPP15-24 is ideal for powering multiple 4-20mA loops or other low power instrumentation.
DPP30-24 30W Power Supply
- 90 to 264 Vac input
- 30 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
- Range of Output Voltages available
The DPP30-24 is a 30W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure ony 45mm wide. The maximum output current is 1.25A at 24Vdc so the DPP30-24 is ideal for powering multiple 4-20mA loops, other low power instrumentation or as a general panel supply.

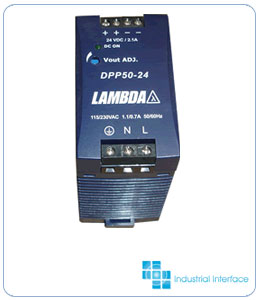

DPP50-24 50W Power Supply
- 90 to 264 Vac input
- 50 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
- Range of Output Voltages available
The DPP50-24 is a 30W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure ony 45mm wide. The maximum output current is 2.00A at 24Vdc so the DPP50-24 is ideal for powering multiple 4-20mA loops, other instrumentation or as a general panel supply.

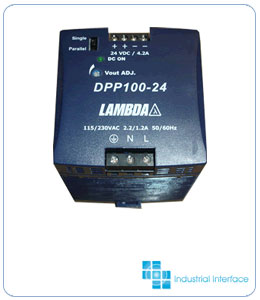

DPP100-24 50W Power Supply
- 90 to 264 Vac input
- 100 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
- Range of Output Voltages available
The DPP100-24 is a 100W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure ony 72.5mm wide. The maximum output current is 4.10A at 24Vdc so the DPP100-24 is ideal for powering multiple 4-20mA loops, other instrumentation or as a general panel supply.

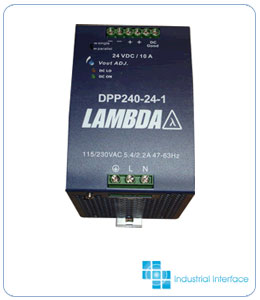

DPP240-24 50W Power Supply
- 90 to 264 Vac input
- 240 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
Range of Output Voltages available
The DPP240-24 is a 240W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure only 83mm wide. The maximum output current is 10A at 24Vdc so the DPP240-24 is ideal for powering multiple 4-20mA loops, other instrumentation or as a general panel supply.
DPP480-24 480W Power Supply
- 0 to 264 Vac input
- 480 W 24Vdc output, others available
- Short Circuit Protection
- Safety to UL 1310 Class 2
Range of Output Voltages available
The DPP480-24 is a 480W Power supply with a universal input and 24Vdc output.
The unit is housed in a compact DIN rail enclosure only 125mm wide. The maximum output current is 20A at 24Vdc so the DPP480-24 is ideal for powering multiple 4-20mA loops, other instrumentation or as a general panel supply.

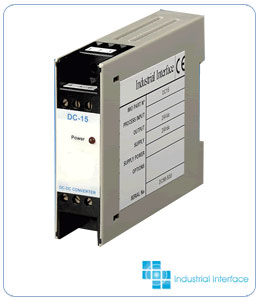

DC-15 15W DC-DC Converter
DC-15 DIN rail mounted DC-DC Converter
- Isolated, Clean 24 Vdc output
- Isolation to 500V
- Compact DIN rail enclosure
- Other power ratings and voltages available
The DC-15 is a DIN rail mounted DC-Dc converter which provides a clean, isolated and regulated 24Vdc at a current of up to 625mA
The unit is typically used to produce an isolated,nooise-free supply to 4-20mA transmitters and other low power instrumentation.
The DC-15 is housed in a compact DIN rail enclosure only 25mm wide.
DC-20 20W DC-DC Converter
- Isolated, Clean 24 Vdc output
- Isolation to 500V
- Compact DIN rail enclosure
- Other power ratings and voltages available
The DC-20 is a DIN rail mounted DC-Dc converter which provides a clean, isolated and regulated 24Vdc at a current of up to 833mA
The unit is typically used to produce an isolated,noise-free supply to 4-20mA transmitters and other low power instrumentation.
The DC-20 is housed in a compact DIN rail enclosure only 25mm wide.
DC-30 30W DC-DC Converter
DC-30 30W DIN rail mounted DC-DC Converter
Isolated, Clean 24 Vdc output
Isolation to 500V
Compact DIN rail enclosure
Other power ratings and voltages available
The DC-30 is a DIN rail mounted DC-Dc converter which provides a clean, isolated and regulated 24Vdc at a current of up to 1250mA.
The unit is typically used to produce an isolated,noise-free supply to 4-20mA transmitters and other low power instrumentation.
The DC-30 is housed in a compact DIN rail enclosure only 25mm wide.
DC-40 40W DC-DC Converter
DC-40 40W DIN rail mounted DC-DC Converter
Isolated, Clean 24 Vdc output
Isolation to 500V
Compact DIN rail enclosure
Other power ratings and voltages available
The DC-40 is a DIN rail mounted DC-Dc converter which provides a clean, isolated and regulated 24Vdc at a current of up to 1667mA.
The unit is typically used to produce an isolated,noise-free supply to 4-20mA transmitters and other low power instrumentation.
The DC-40 is housed in a compact DIN rail enclosure only 25mm wide.
