Level Measurement / Continuous Ultrasonic

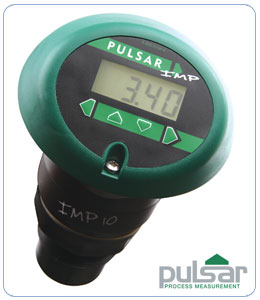

IMP
Self-contained ultrasonic level measurement without compromise.
Pulsar’s IMP+ range is non-contacting ultrasonic level measurement without compromise. Compact, low profile self contained units with the benefit of digital echo processing specially designed for IMP+. Simple programming without affecting the IP rating via the integral key pad or using IMP PC, IMP+’s own PC software that lets you program the unit, view and download echo profiles and parameters.
There is an IMP+ to suit your application. IMP+ is available in 3m, 6m and 10m range versions can be wired for 2 wire or 3 wire operation. IMP+I.S. 2-wire Intrinsically Safe(I.S.) versions are also available in 3m, 6m and 10m range versions. All IMPs feature LCD displays and digital temperature measurement and compensation. Imp also has 2 relay outputs as standard which when wired as a 3 wire unit provides sufficient power to operate these.
When used in wake-up mode for low power applications, uses 40µA current @ 15mins interval with 3 seconds "live".
All versions are available with a PVDF nose cone option for aggressive chemical applications.

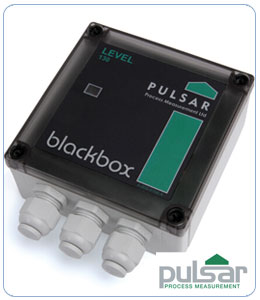

Blackbox 130
Deceptively simple, the Blackbox range includes all the echo processing sophistication of DATEM featured in the Ultra range but without the display and on-board programming capabilities that are unneccessary in a distributed control environment.
Programmed by a hand-held calibrator or from a computer, Blackbox allows engineers to select the output to suit the application.
Non-contacting level measurement featuring a 4-20mA output (isolated or non-isolated) proportional to level and two alarm or control relays. Available with or without display.

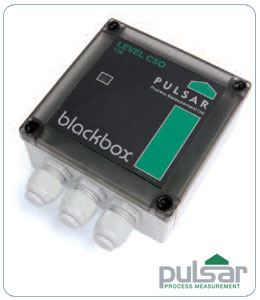

Blackbox 136 Level CSO
A sophisticated ultrasonic system specifically designed for use with batteries to provide non-contact monitoring of level or overflow events. Exceptionally low battery consumption maximises battery life for use in remote locations.
Advantages
Very low power consumption suitable for battery operation
On board logging of level, date, time, duration and volume spill
Designed for CSO applications
Monitors level or flow
DATEM echo processing

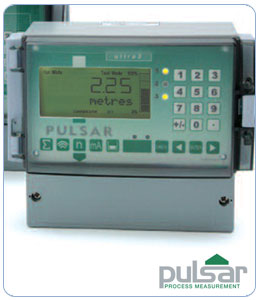

Ultra 3
Ultra 3 combines several full-function, world-beating ultrasonic level measurement instruments into one. Pulsar engineers have created devices that can be simply configured by the user to provide top-drawer performance. Through the use of ULTRAWIZARD, an integrated high level software configuration tool, you choose your application and the Ultra unit leads you through the set-up process for that specific operation. Full control functions are available: open channel flow is calculated to BS ISO1438 and 4359. Pump control features are built into Ultra3, and an extensive set of volume calculations and linearisation facilities are available for a tank or silo level measurement task.
Ultra 3 features the benefits of DATEM , the world’s most advanced echo processing software, for level measurement.
Level
Perfect for the wide range of level measurement applications in solids and liquids found in the food, cement, pharmaceutical, chemical, power generation and many more industries. In level measurement configuration Ultra 3 has three control relays and a measurement range from 125mm to 50m.

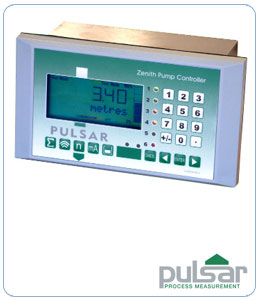

Zenith 140 - Pump Station Controller
The Pulsar Zenith Intelligent Pump Controller is a high specification pumping station management system, offering unrivalled performance. Using Pulsar’s proven non-contacting ultrasonic technology it provides almost all known pumping and tariff management routines in an easy to use package. By combining advanced ultrasonic level measurement and the monitoring of pumps utilising digital inputs.
By combining advanced ultrasonic level measurement with the control and monitoring of pumps and providing many other control functions, it is possible to eliminate a PLC by using Zenith in a smaller station. Significant capital and operational cost savings can be achieved by using TariffGuard (peak tariff avoidance control software) to enable optimum use of pumps during periods of lower cost electricity.

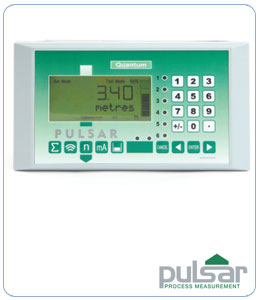

Quantum
The last word in Level and Pumping Station control.
Pulsar has taken the intelligent pump control built into the Zenith, to a new level with Quantum. It has all the features of Zenith but with extra capabilities and advantages. Quantum will provide alarms, including a unique alarm warning of ‘time to spill’ in critical areas, and reset tripped pumps automatically, so staff may never have to visit site just to reset a pump (pat. pending). Another unique feature is the ability to alarm on burst rising main and pump blockage.
Quantum can be programmed to provide an alarm based on the time remaining before the station or well spills over. This, for instance, is vital for utilities who face the risk of prosecution if a station pollutes the local environment.
Ultra 5
Ultra 5 offers the ultimate flexibility in ultrasonic control and measurement. Like Ultra 3, Ultra 5 is user-configurable to measure level or volume, provide advanced pump control or measure open channel flow to BS ISO 1438 and 4359. Over and above the facilities offered by Ultra 3, Ultra 5 gives you the ultimate flexibility of: five assignable relays with extra alarm options such as pump efficiency; extra pump control functions including pump run-on and pump exercising; storm and aeration control; differential control using two transducers, the addition of further relays in OCM applications.
Ultra 5 features the benefit of DATEM, the world’s most advanced echo processing software, for reliable level measurement.
Level
All the features of the Ultra 3 with 2 additional relays. Offers optional 4 -20mA input for a pressure transmitter or similar.
Quantum 2
The Last Word in Level and Pumping Station Control.
Pulsar has taken intelligent pump control to a new level with Quantum and Quantum 2 . Both units provide alarms, including a unique alarm warning of ‘time to spill’ in critical areas, and reset tripped pumps automatically, so staff may never have to visit site just to reset a pump (pat. pending). Quantum 2 introduces a second milliamp output and unique flow measurement capabilities that can remove the need for a magnetic flow meter and warn of a burst rising main.
