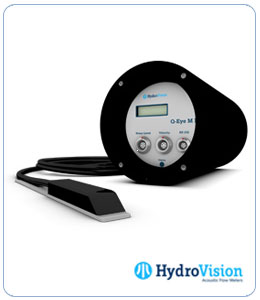

Q-Eye M II
Portable Pulse-Doppler system.
| Sensor: |
1 x velocity 1 x water level |
| Frequency: | 1 MHz |
| Number of Cells: |
Q-Eye PSC: mean value Q-Eye PSC PRO: max. 22 cells |
| Range: |
velocity ± 5,3 m/s water level 0,04 - 1,3 m expandable via optional hydrostatic sensor: 0 - 3,5 m |
| Accuracy: |
± 1% of measured value for v and h ± 0,25% for value h (hydrostatic) ± 2% for discharge |
| Cable Length: | max. 80 m |
| Display: | 1 line, 8 characters |
| Keyboard: | one key |
| Datalogger: | 2MB (internal) |
| Communication: | RS-232 |
| Outputs: | 1 x Pulse |
| Power Supply: | ATEX (option) |
| Enclosure: | POM (Polyoxymethylen) |
Application of Q-Eye M II
Q-Eye MII shows its advantages in mobile applications. The long lifetime of approx. 90 days with a measuring interval of 5 minutes, as well as the small and robust housing make it the perfect tool for temporary operations. In addition to water level and flow, the signal quality, battery voltage and the calculated flow are also stored inside the data logger. A pulse output provides the necessary signal to a sampler. With the optional connectable pressure sensor, the water level can be collected redundantly and the measuring range can be extended up to 3,5 m. Standardized spring rings make mounting at site easy.
