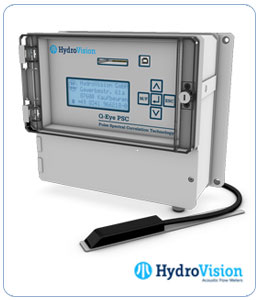

Q-Eye PSC
Stationary Pulse Spectral Correlation system.
| Sensor: |
1 x velocity 1 x water level |
| Frequency: | 1 MHz |
| Number of Cells: |
Q-Eye PSC: mean value Q-Eye PSC PRO: max. 22 cells |
| Range: |
velocity ± 5,3 m/s water level (ultrasonic) 0,04-1,3 m expandable via external 4-20 mA sensor |
| Accuracy: |
± 1% of measured value for v and h (ultrasonic) ± 2% for discharge |
| Cable Length: | max. 80 m |
| Display: | 4 lines, 20 characters |
| Keyboard: | 5 keys |
| Datalogger: | Compact Flash Card up to 2GB |
| Communication: | RS-232, MODBUS |
| Inputs: | max. 8 x 4-20 mA |
| Outputs: |
max. 4 x 4-20 mA 2 x Relay, 2 x Pulse |
| Power Supply: | 100-240 VAC (47-63 Hz) or 12 VDC |
| Approval: | ATEX (option) |
| Enclosure: | Aluminium, wall mounted |

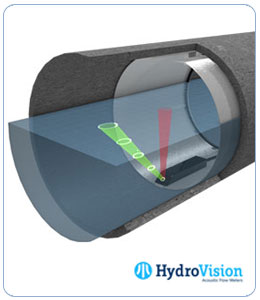

Application of Q-Eye PSC
Q-Eye PSC impresses with its configuration. External sensors can be supplied with power and read in and stored via 4-20 mA signal. Not only water level and flow, but also parameters for water quality like conductivity, O2 or turbidity can be measured and stored on a Compact Flash Card. The system is programmed without additional devices over 5 keys.
