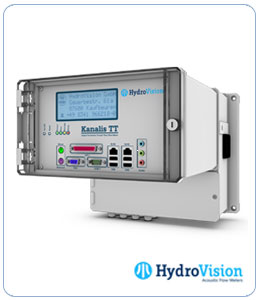

Kanalis TT ECM
Travel time system with digital signal processing.
| Acoustic Paths: | 1 - 8, length 1 - 30 m |
| Frequency: | 200 kHz |
| Accuracy: | ± 2% (typical) |
| Display: | 4 lines, 20 characters |
| Datalogger: | internal, sampling interval user selectable |
| Communication: | RS-232, MODBUS, Ethernet, USB |
| Inputs: | max. 8 x 4-20 mA |
| Outputs: |
max. 4 x 4-20 mA 2 x Relay, 2 x Pulse |
| Power Supply: | 85-264 VAC (50-60 Hz) or 12 VDC |
| Enclosure: | Aluminium, wall mounted |
Transducer TD-200/18
| Frequency: | 200 kHz |
| Beam Width: | 8° (-3dB) |
| Dimensions: | Ø 31,8 mm, Height 50 mm |
Mounting Assembly
Standardized mounting devices for any kind of channel geometry like rectangular, trapezoid or natural river banks are available. The design is flow optimized protecting the transducers against moving objects suspending in the flow stream. It also provides room for connections and protective conduits.

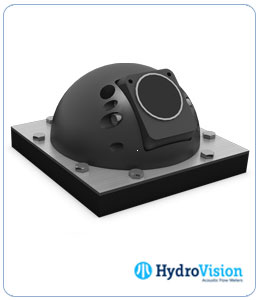

TD-200/8
| Frequency: | 200 kHz |
| Beam Width: | 8° (-3dB) |
| Dimensions: | Ø 70 mm, Height 40 mm |
Mounting Assembly
Standardized mounting devices for any kind of channel geometry like rectangular, trapezoid or natural river banks are available. The design is flow optimized protecting the transducers against moving objects suspending in the flow stream. It also provides room for connections and protective conduits.
