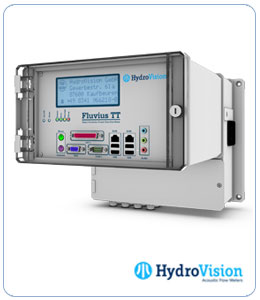

Fluvius TT ECM
Travel time system with digital signal processing.
| Acoustic Paths: | 1 - 8, length 1 - 1000 m |
| Frequency: | 15, 28, 100 and 200 kHz |
| Accuracy: | ± 2% (typical) |
| Display: | 4 lines, 20 characters |
| Datalogger: | internal, sampling interval user selectable |
| Communication: | RS-232, MODBUS, Ethernet, USB |
| Inputs: | max. 8 x 4-20 mA |
| Outputs: |
max. 4 x 4-20 mA 2 x Relay, 2 x Pulse |
| Power Supply: | 85-264 VAC (50-60 Hz) or 12 VDC |
| Enclosure: | Aluminium, wall mounted |
Transducer TD-15/17
| Frequency: | 15 kHz |
| Beam Width: | 17° (-3dB) |
| Dimensions: | Ø 368 mm, Height 121 mm |
Transducer TD-28/18
| Frequency: | 28 kHz |
| Beam Width: | 18° (-3dB) |
| Dimensions: | Ø 183 mm, Height 142 mm |
Transducer TD-100/9
| Frequency: | 100 kHz |
| Beam Width: | 9° (-3dB) |
| Dimensions: | Ø 183 mm, Height 142 mm |
Transducer TD-200/8
| Frequency: | 200 kHz |
| Beam Width: | 8° (-3dB) |
| Dimensions: | Ø 70 mm, Height 40 mm |
